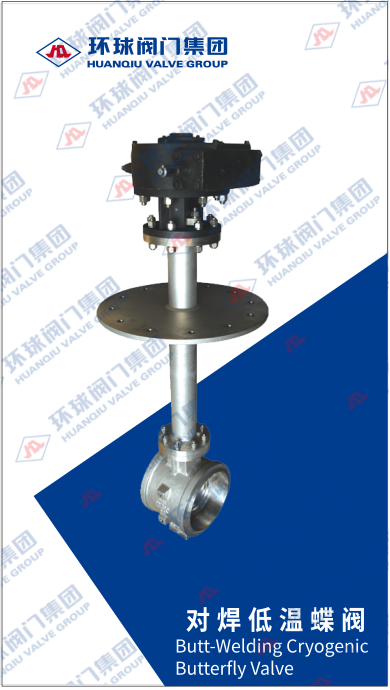

A cryogenic butterfly valve is an engineered quarter-turn valve specifically designed to regulate or isolate the flow of media in piping systems operating at extremely low temperatures, typically from -50°C (-58°F) down to -196°C (-321°F). These valves are characterized by their compact design, lightweight construction, and rapid operation, making them an efficient and cost-effective solution for a wide range of cryogenic applications.

  •    Description

    A cryogenic butterfly valve is an engineered quarter-turn valve specifically designed to regulate or isolate the flow of media in piping systems operating at extremely low temperatures, typically from -50°C (-58°F) down to -196°C (-321°F). These valves are characterized by their compact design, lightweight construction, and rapid operation, making them an efficient and cost-effective solution for a wide range of cryogenic applications. Industries such as Liquefied Natural Gas (LNG), industrial gas production and distribution, chemical processing, and aerospace rely on these valves for reliable performance in severe service conditions.

    The fundamental design addresses the unique challenges posed by cryogenic temperatures, including material embrittlement, thermal contraction, and the necessity to keep sealing elements at functional temperatures.



       Key Design Features

    • Extended Stem / Neck (Extended Spindle): Similar to other cryogenic valve types, butterfly valves feature a extended neck section between the body and the actuator. This critical design element serves to:
    • Protect the Seals: It positions the primary stem seals (typically located in the upper bushing) away from the extreme cold, maintaining their elasticity and sealing integrity.
    • Prevent Heat Ingress: It creates a thermal barrier, minimizing heat transfer from the environment to the cryogenic fluid, which is vital for system efficiency and preventing product boil-off.
    • Eliminate External Icing: It ensures that the operating mechanism (stem, actuator) remains free of ice, guaranteeing reliable operation and personnel safety.
    • Cryogenic-Optimized Seat Design: The seat is the heart of the valve's sealing performance. Cryogenic butterfly valves utilize advanced seat materials and designs:
      • Materials: Seats are made from advanced polymers such as modified PTFE (Teflon) or PEEK, which retain excellent flexibility and low-friction properties at cryogenic temperatures.
      • Sealing Principle: Many designs employ a eccentric or triple-offset design. This geometry reduces friction during operation by allowing the disc to lift off the seat before rotating, minimizing wear and ensuring a tight, bubble-tight seal when closed.
      • Cryogenic-Tough Materials: All wetted parts are selected for their ability to resist impact and embrittlement at low temperatures.
      • Body & Disc: Austenitic stainless steels (SS304, SS316L) are standard. For more corrosive services, duplex stainless steels or nickel alloys may be used.
      • Stem: Typically 300 series stainless steel or 17-4PH.
      • Low-Emission Stem Sealing: To meet stringent environmental standards (e.g., ISO 15848), cryogenic butterfly valves are equipped with advanced stem sealing systems, often incorporating multiple lip seals or live-loading packing to prevent fugitive emissions of hazardous gases.



       Technical Specifications

    • Size Range: 2" to over 60" (DN50 to DN1500+)
    • Pressure Class:  ANSI 150 to 300 (PN16 to PN40); higher classes available with specific designs
    • Temperature Range:  -196°C to +80°C (-321°F to +176°F)
    • End Connections:  Wafer, Lugged, Double Flanged, or Weld Ends
    • Standards:  API 609, BS 6364, ISO 28921, ASME B16.34



       Advantages and Applications

    Advantages over Alternative Valves (e.g., Gate Valves):

    • Compact and Lightweight: Requires less space and support structure.
    • Quick Operation: Quarter-turn operation allows for fast open/close cycles.
    • Cost-Effective: Generally lower initial cost and total cost of ownership.
    • Excellent Flow Regulation: Suitable for both on/off and throttling services.
    • Primary Applications:
    • LNG Industry: Storage tanks, send-out lines, vaporizers, and truck loading stations.
    • Industrial Gases: Storage tanks for liquid oxygen (LOX), nitrogen (LIN), argon (LAR), hydrogen (LH2), and helium (LHe), as well as processing plants.
    • Chemical Industry: Handling of ethylene, propylene, and other liquefied gases.
    • CO2 Applications: In food and beverage industries or chemical processes.



       Conclusion

    The cryogenic butterfly valve represents an optimal blend of performance, reliability, and economy for flow control in ultra-low-temperature environments. Its robust design, focused on overcoming the challenges of thermal contraction and seal integrity, makes it an indispensable component in modern cryogenic infrastructure. When selecting a valve, the specific application requirements—including temperature, pressure, cycle frequency, and media—must be carefully evaluated to choose between a resilient-seated or metal-seated (triple-offset) design for optimal service life and performance.
